A4 cut-size sheeter with A4 wrapping machine

Place of Origin:

, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

This Machine can cut roll copy paper into A4 A3 paper, 8.5*11 inch, 8.5*13 inch copy paper,etc, and wrapping into ream.
Amy(

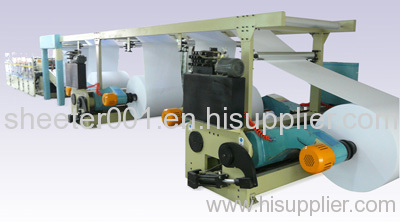

A4 /A3 cut size sheeter with automatic wrapping machine for copy paper

A4 Size Paper Cutting Machine (CHM-A4 Paper Cutting Machine)

This series of machine is used to cutting Big paper roll into A4, A3, B5 and 8.5*11 inch sizes, We also can design according to customers requirement, such as legal size, letter size etc..

Model: CHM-A4-4

MAIN SPECIFICATIONS:
Paper Width: Gross width 900mm, net width 840mm
Cutting numbers: 4 cutting-A4 210mm (width)
Diameter of: Paper roll: Max. 1200mm. Min. 600mm
Diameter of: Paper core: 3 or 6 inches or depend on the demand of clients
Paper weight: 60-100gsm
Sheet length: 297mm
Ream amount: 500 sheets. Height: Max.62mm
Max. Speed of production: 120m/min(depend on different paper)
Max. Numbers of cutting: 404cutting/min
Output of the ream: 3.2 times/min
Load of cutting: 400gsm

Cutting accuracy: about 0. 2mm
Cutting requirement: constant speed, no break in reel, cutting all paper one time , eligible paper.
Drive: AC frequency conversion and step-less

Main power supply: 3*380V AC, 50HZ
Voltage: 220V AC/ 24V DC
Power: 32KW
Compressing air consumption: 300NL/min
Air pressure: 6 bar
Edge cutting: 2*10mm

optional parts:
Auto wrapping system
